3 CIRCUIT TRACK SYSTEM

The track’s frame material is extruded aluminum. The insulation profiles inside the frame are plastic. The phase and neutral conductors are 2,2 mm circle copper, the earth contact is cut on the aluminum frame. The material of the plastic accessories is self-extinguishing polycarbonate, class V0

3 CIRCUIT DALI TRACK SYSTEM

The track’s frame material is extruded aluminum. The insulation profiles inside the frame are plastic. The phase and neutral conductors are 2,2 mm circle copper, the earth contact is cut on the aluminum frame. The material of the plastic accessories is self-extinguishing polycarbonate, class V0.

CONNECTOR COVERS

All cover plates are used in recessed lighting track systems. The cover plate can be folded to the shape suitable for covering the parts to be hidden. Compatible with 3-circuit system

ADAPTERS

SUSPENSION EQUIPMENTS

The adapters have a rotary dial for selecting the circuit. It is easy to connect the wires by pressing them to the connecters with the unipro TIL tools. Connecting the wires does not require screws or peeling the wires

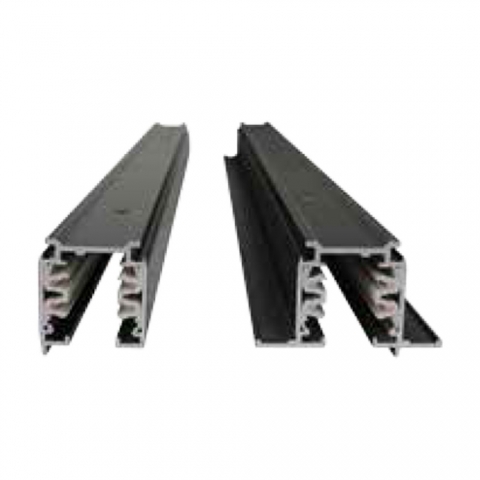

Recessed Mains Voltage Track

Extruded aluminium body. Available in different lengths: 1000/2000/3000/4000 mm. Has two lateral wings that serve as supports for false ceiling panels. The track houses 6 wires, of which 4 for three-phase mode and 2 for DALI mode. The wires are enclosed in extruded rigid sections made of insulating material with high electrical rigidity. The 3 conductors together with the neutral wire form 3 separate circuits, which make 3 switching arrangements possible. Composition If the power supply to the track is single-phase, the maximum load is 16 A (3500VA), while for DALI contacts 2x1A (50VA) FELV. If the track is connected to a three-phase power supply, the maximum total is 16A (10500VA), DALI 2X1A (100VA) FELV. The decentralized position of the earth contact renders the track structure asymmetrical. Therefore the connecting joints must be chosen accordingly. Recessed installation is possible.
