Treluce Light

GRIDIN LT-11.1300-3

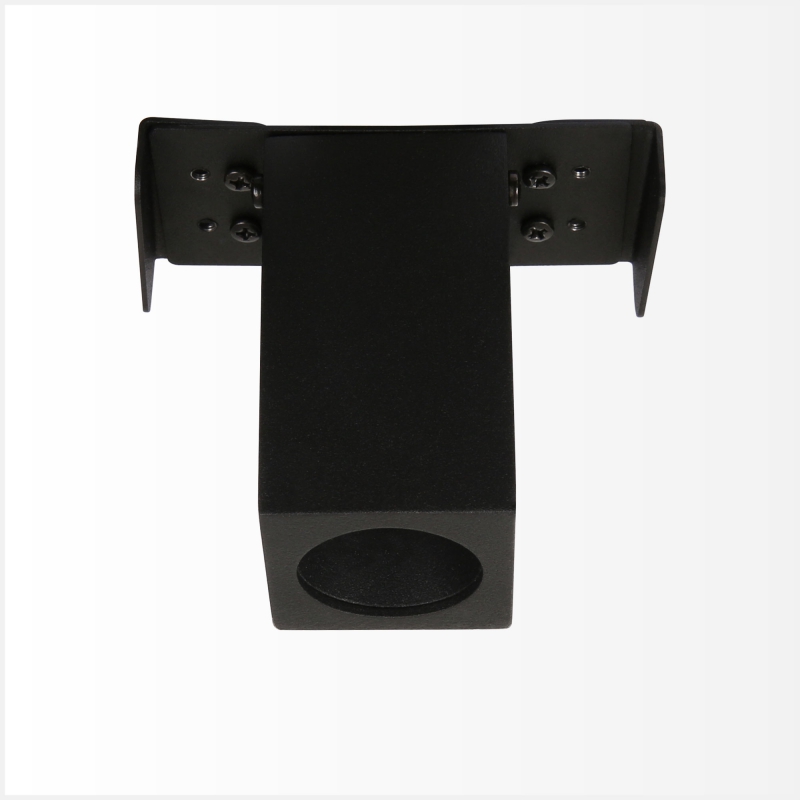

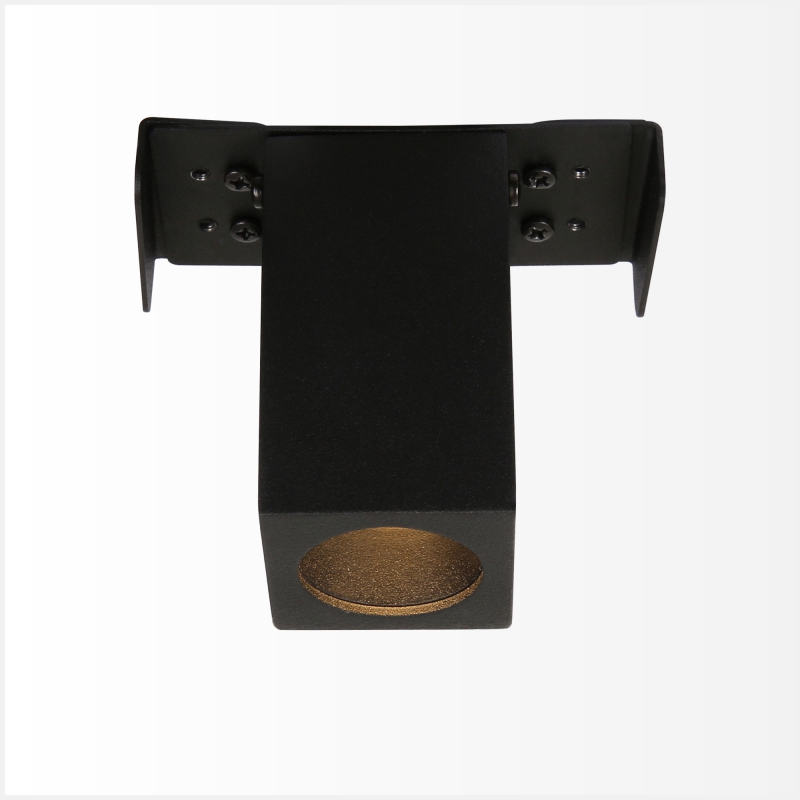

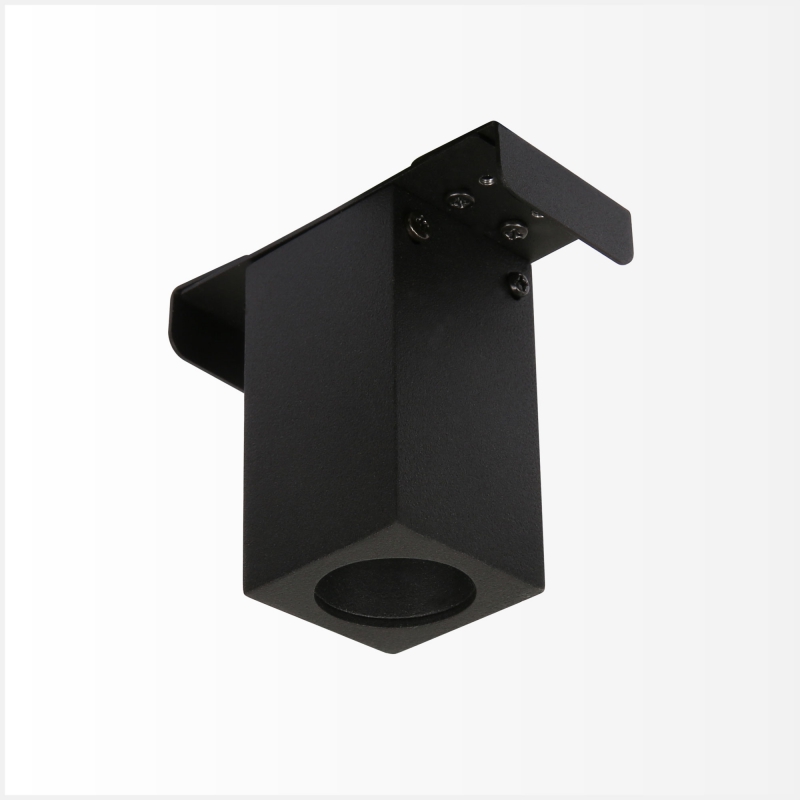

Mesh ceilings are detailed instruments when it comes to lighting. Every milimeters are considered during the design period of Gridin. * BODY: Die-cast aluminium; available in round and square shaped bodies both in two different sizes as well as trimless options. * Fixed body with decorative ring space which allows the light to be seen as ring. * Flush mount installation in false ceilings with 1 to 25 mm thickness; fixing system with steel springs. * Fixture complete with electronic control gear.

Supply: 110-240 V
lllumination Type: Direct
Dimming Protocol:
Not Dimmable
Dimmable on Mains
Dimmable by 1/10 V
Dimmable by DALI
Dimmable by Wireless
Accesories:
Cap W
Honeycomb Louvre HCL
Filterglas
Dichroic Filters
Cap B
Cap G

Lighting Effects

12°

24°

36°

48°

60°

Optic Angle	12°
Optic Angle	24°
Optic Angle	36°
Optic Angle	48°
Optic Angle	60°

Code	Power	Lumen	CRI	Color of Light
LT-11.1300-3-80-27	1 W	100 lm	Ra>80	2700 K
LT-11.1300-3-80-30	1 W	100 lm	Ra>80	3000 K
LT-11.1300-3-80-40	1 W	100 lm	Ra>80	4000 K
LT-11.1300-4-80-27	2 W	150 lm	Ra>80	2700 K
LT-11.1300-4-80-30	2 W	150 lm	Ra>80	3000 K
LT-11.1300-4-80-40	2 W	150 lm	Ra>80	4000 K
LT-11.1300-5-80-27	3 W	250 lm	Ra>80	2700 K
LT-11.1300-5-80-30	3 W	250 lm	Ra>80	3000 K
LT-11.1300-5-80-40	3 W	250 lm	Ra>80	4000 K
