Treluce Light

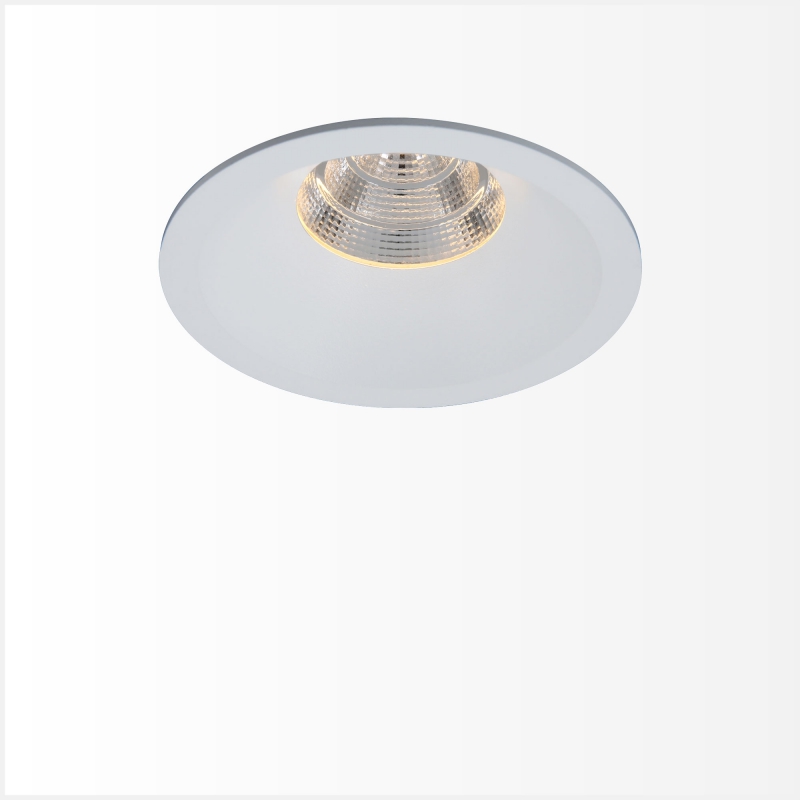

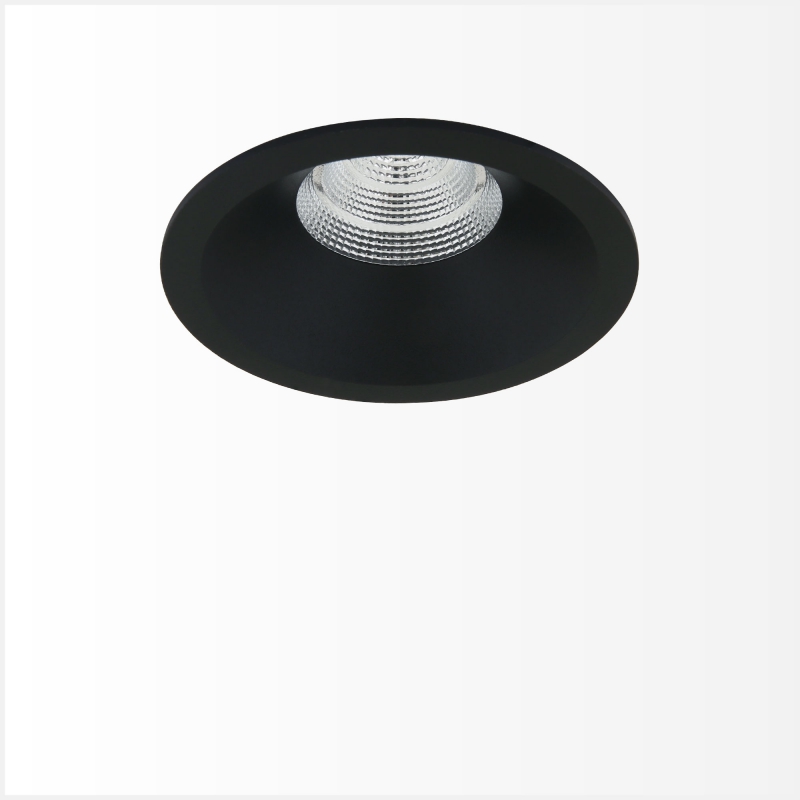

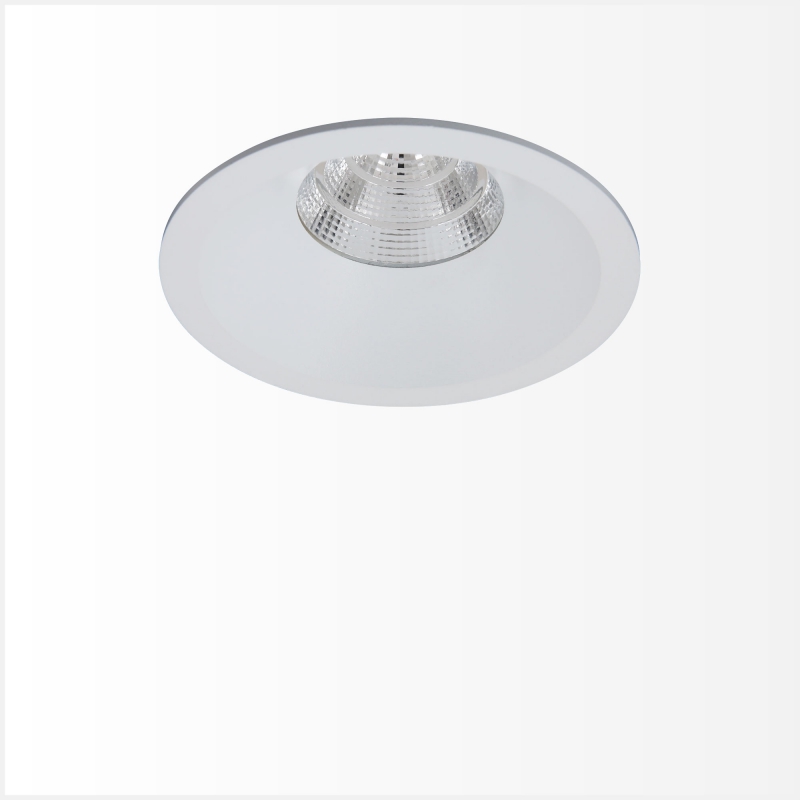

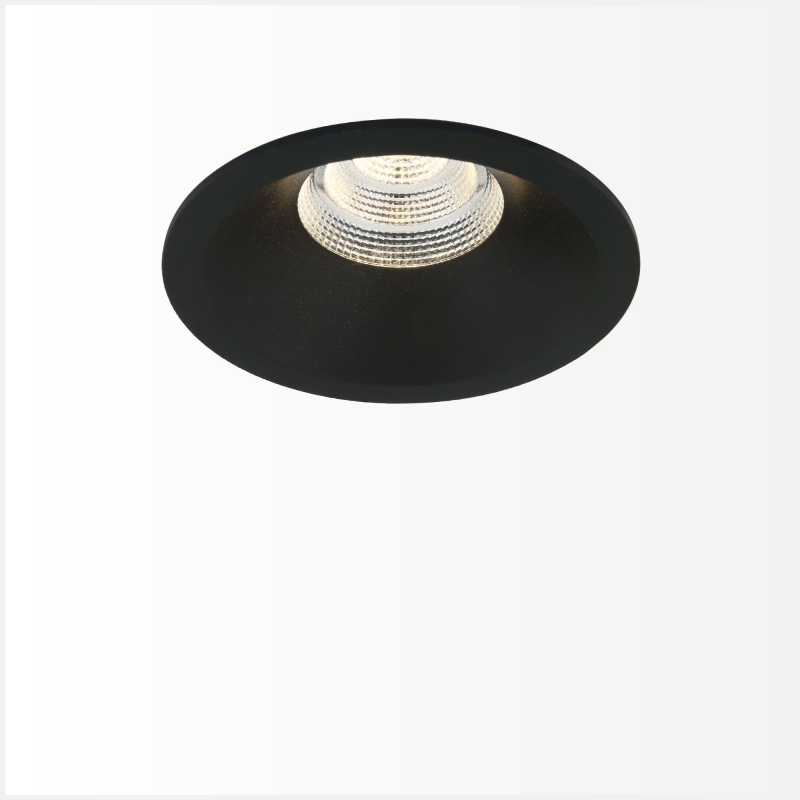

VILI LT-11.0103

Vili solves most of the problems in any kind of places from technical functional areas to lounges where people chill. * BODY: Die-cast aluminium; available in round shape as recessed, round and square shapes as surface mounted options. * Flush mount installation in false ceilings with 1 to 25 mm thickness; fixing system with steel springs. * Fixture complete with electronic control gear. * Available from 6,8 W to 8,9W COB LED with 2700K/3000K/4000K options.

Supply: 110-240 V
lllumination Type: Direct
Dimming Protocol:
Not Dimmable
Dimmable on Mains
Dimmable by 1/10 V
Dimmable by DALI
Dimmable by Wireless
Accesories:
Honeycomb Louvre HCL
Filterglas
Dichroic Filters

REFERENCE

Lighting Effects

24°

36°

48°

Optic Angle	24°
Optic Angle	36°
Optic Angle	48°
Weight	0,35 kg
Cutout Shape	Round Shape

Code	Power	Lumen	CRI	Color of Light
LT-11.0103-80-27	6,8 W	784 lm	Ra>80	2700 K
LT-11.0103-80-30	6,8 W	817 lm	Ra>80	3000 K
LT-11.0103-80-40	6,8 W	850 lm	Ra>80	4000 K
LT-11.0103-90-27	6,8 W	654 lm	Ra>90	2700 K
LT-11.0103-90-30	6,8 W	681 lm	Ra>90	3000 K
LT-11.0103-90-40	6,8 W	729 lm	Ra>90	4000 K
LT-11.0103-1-80-27	8,9 W	784 lm	Ra>80	2700 K
LT-11.0103-1-80-30	8,9 W	817 lm	Ra>80	3000 K
LT-11.0103-1-80-40	8,9 W	850 lm	Ra>80	4000 K
LT-11.0103-1-90-27	8,9 W	654 lm	Ra>90	2700 K
LT-11.0103-1-90-30	8,9 W	681 lm	Ra>90	3000 K
LT-11.0103-1-90-40	8,9 W	729 lm	Ra>90	4000 K

PRODUCT FAMILIES

VILI LT-11.0103

VILI LT-11.0103-2
