Treluce Light

JOE LT-11.0113

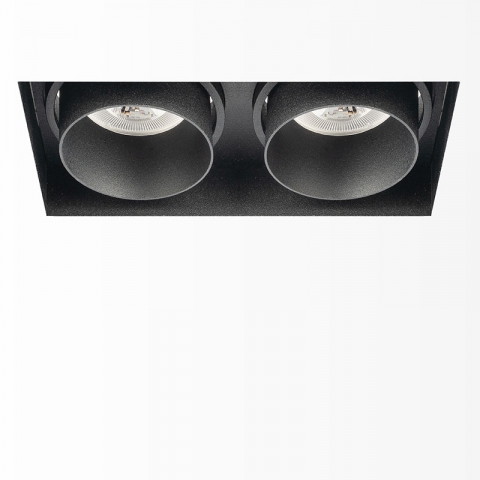

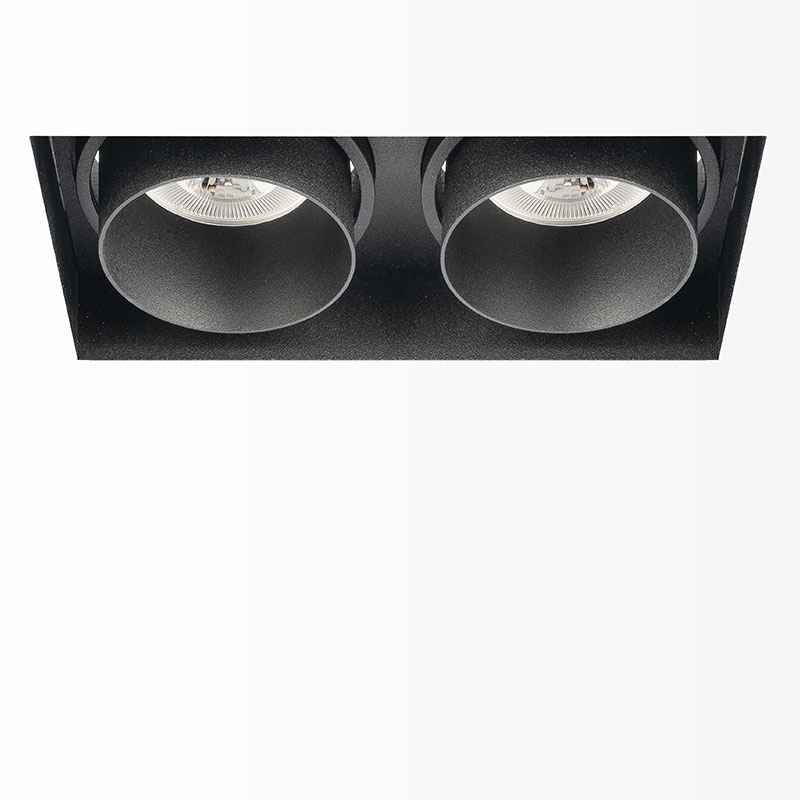

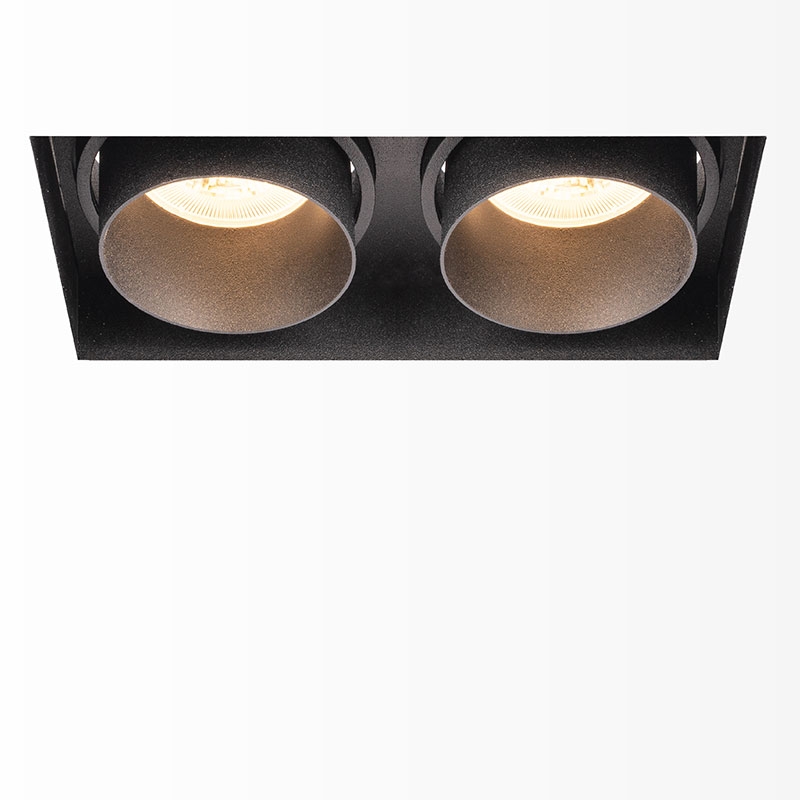

"* Recessed trimless square luminaire with rotatable design. •A lens is used instead of a conventional reflector, it focuses the light beam. • The mounting trim is installed during rough-in stages of renovations, and the luminaire itself installed during finishing stages. • BODY: Die-cast aluminium; available in single, double, and triple versions in trimless body. * Orientable inner body. • Flush mount installation in false ceilings with 1 to 25 mm thickness; fixing system with steel springs. "

Supply: 110-240 V
lllumination Type: Direct
Dimming Protocol:
Not Dimmable
Dimmable on Mains
Dimmable by 1/10 V
Dimmable by DALI
Dimmable by Wireless
Accesories:
Cap G
Cap W
Honeycomb Louvre HCL
Dichroic Filters
Filterglas
Cap B

Code	Power	Lumen	CRI	Color of Light
LT-11.0113-27-G	max. 50 W			2700 K
LT-11.0113-30-G	max. 50 W			3000 K
LT-11.0113-40-G	max. 50 W			4000 K
LT-11.0113-80-27	2x6,1 W	2x784 lm	Ra>80	2700 K
LT-11.0113-80-30	2x6,1 W	2x817 lm	Ra>80	3000 K
LT-11.0113-80-40	2x6,1 W	2x850 lm	Ra>80	4000 K
LT-11.0113-90-27	2x6,1 W	2x654 lm	Ra>90	2700 K
LT-11.0113-90-30	2x6,1 W	2x681 lm	Ra>90	3000 K
LT-11.0113-90-40	2x6,1 W	2x729 lm	Ra>90	4000 K
LT-11.0113-1-80-27	2x8,9 W	2x1089 lm	Ra>80	2700 K
LT-11.0113-1-80-30	2x8,9 W	2x1134 lm	Ra>80	3000 K
LT-11.0113-1-80-40	2x8,9 W	2x1179 lm	Ra>80	4000 K
LT-11.0113-1-90-27	2x8,9 W	2x908 lm	Ra>90	2700 K
LT-11.0113-1-90-30	2x8,9 W	2x946 lm	Ra>90	3000 K
LT-11.0113-1-90-40	2x8,9 W	2x1013 lm	Ra>90	4000 K
