Treluce Light

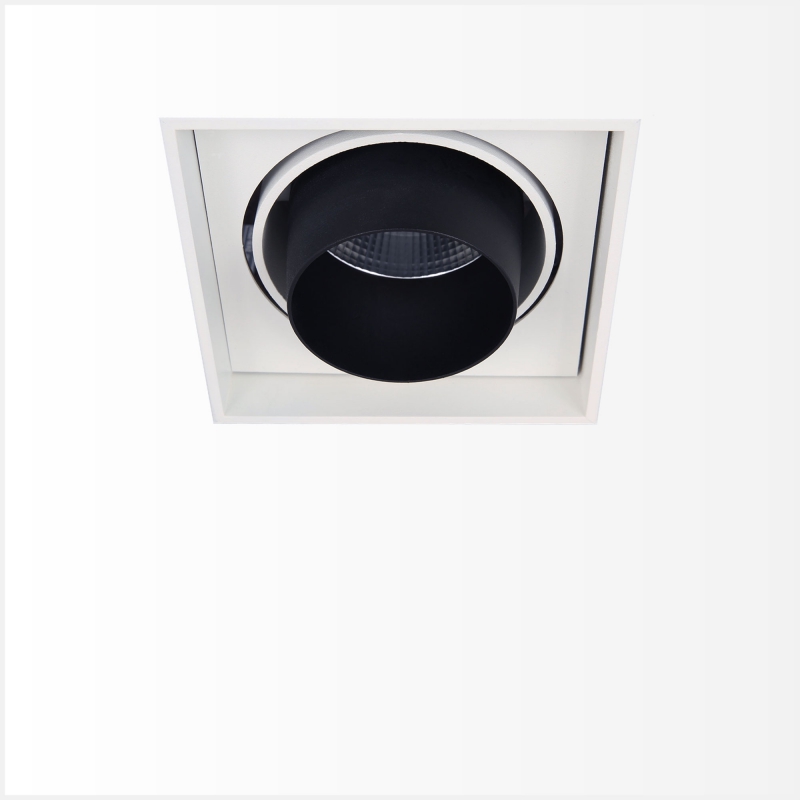

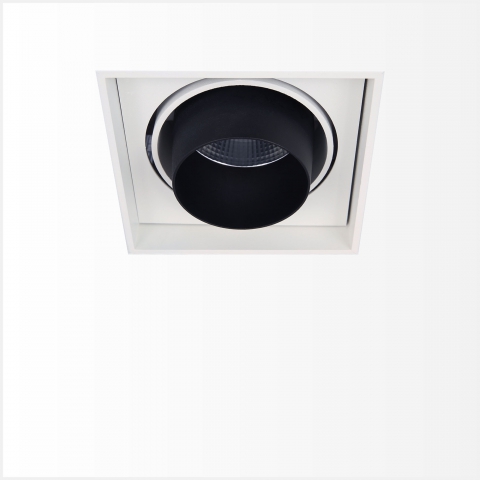

BALDER LT-16.0103-S

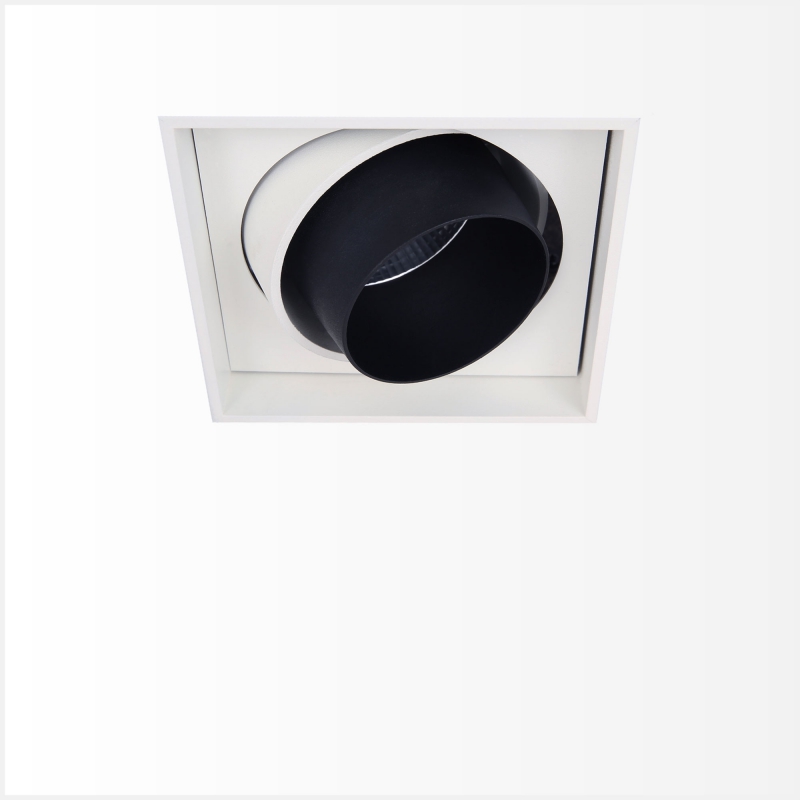

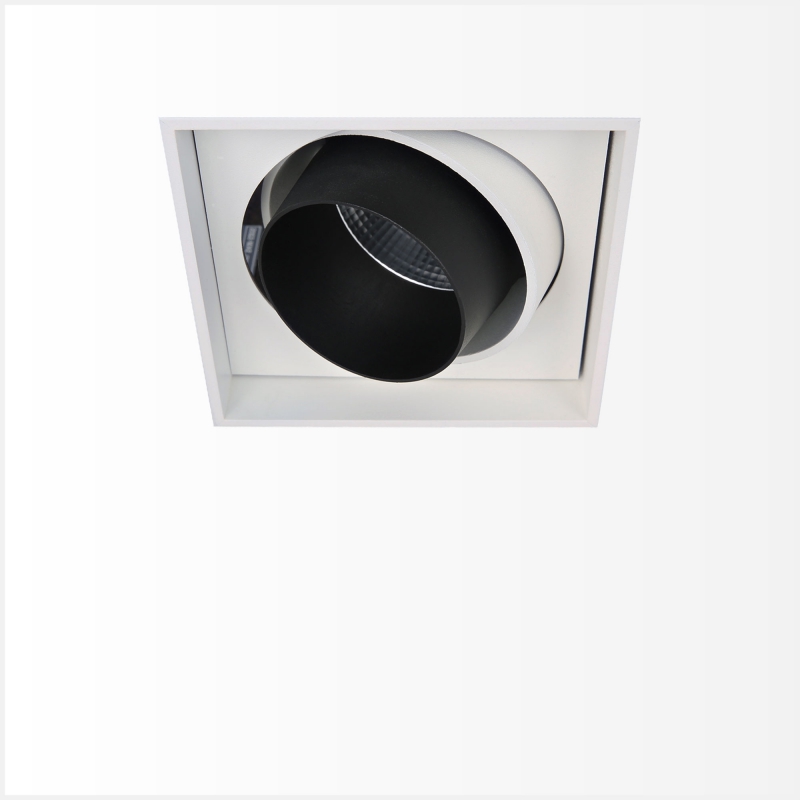

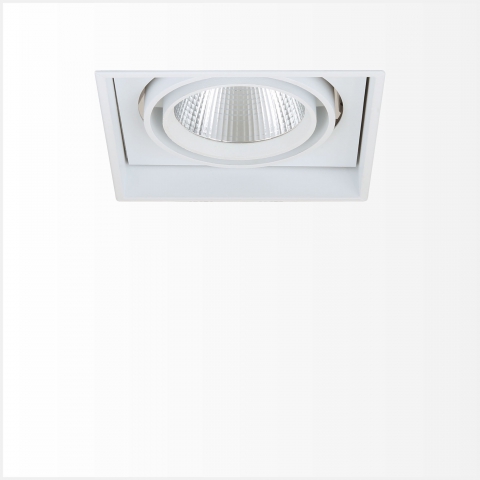

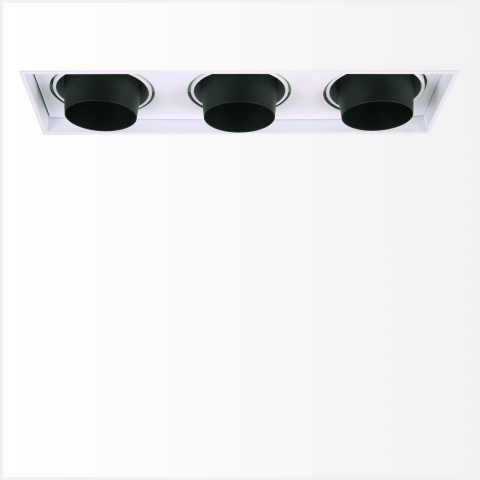

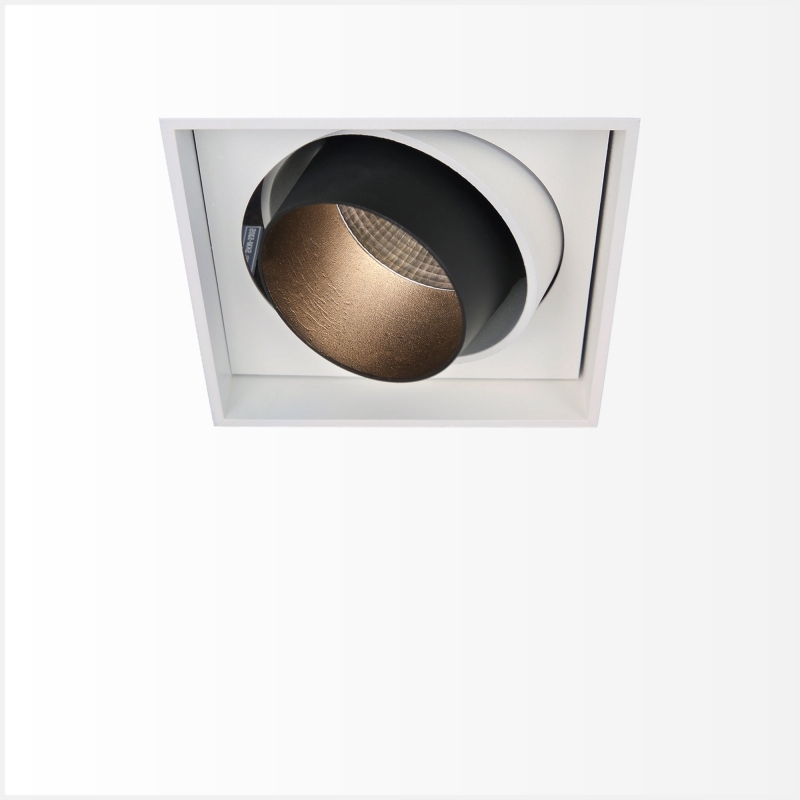

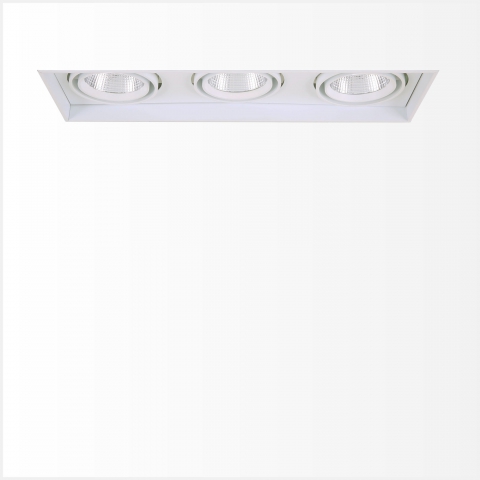

* Thinner trim makes Balder stand our from any other rectangular shaped lighting device * BODY: Die-cast aluminium; available in single, double, and triple versions in trimless body. * Orientable inner body. * Flush mount installation in false ceilings with 1 to 25 mm thickness; fixing system with steel springs. * Fixture complete with electronic control gear.

Supply: 110-240 V
lllumination Type: Direct
Dimming Protocol:
Not Dimmable
Dimmable on Mains
Dimmable by 1/10 V
Dimmable by DALI
Dimmable by Wireless
Accesories:
Honeycomb Louvre HCL
Cross Baffle
Filterglas
Dichroic Filters

REFERENCE

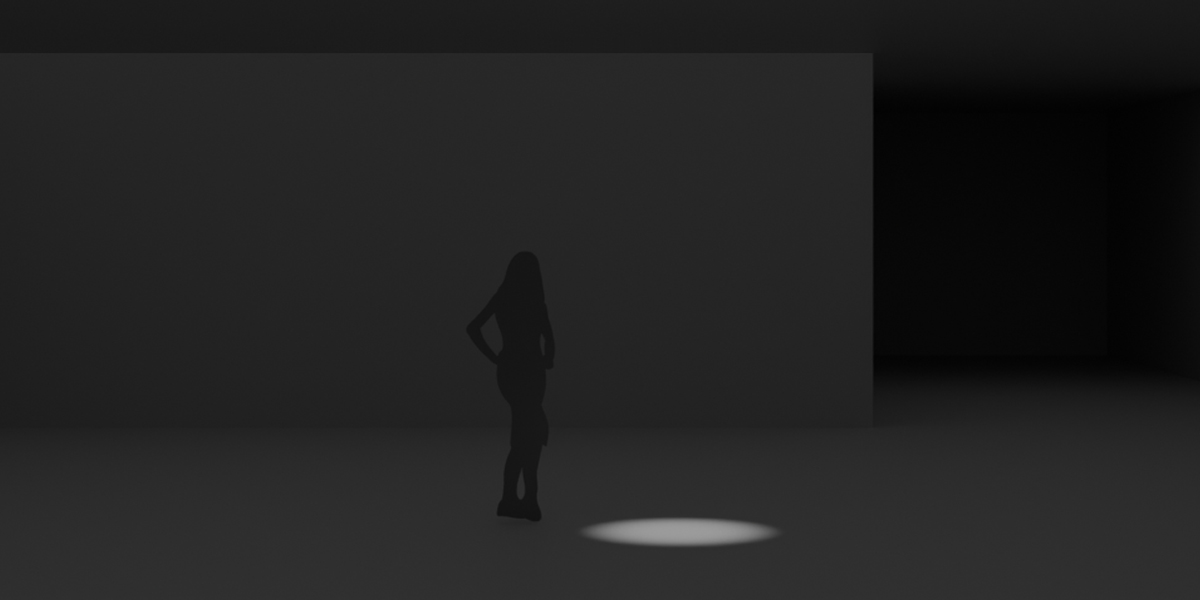

Lighting Effects

24°

36°

Optic Angle	24°
Optic Angle	36°
Weight	1,6 kg
Cutout Shape	Rectangular Shape

Code	Power	Lumen	CRI	Color of Light
LT-16.0103-S-1-27	11,3 W	1109 lm	Ra>90	2700 K
LT-16.0103-S-1-30	11,3 W	1168 lm	Ra>90	3000 K
LT-16.0103-S-1-40	11,3 W	1226 lm	Ra>90	4000 K
LT-16.0103-S-2-27	16,4 W	1551 lm	Ra>90	2700 K
LT-16.0103-S-2-30	16,4 W	1633 lm	Ra>90	3000 K
LT-16.0103-S-2-40	16,4 W	1714 lm	Ra>90	4000 K
LT-16.0103-S-3-27	23,6 W	2109 lm	Ra>90	2700 K
LT-16.0103-S-3-30	23,6 W	2220 lm	Ra>90	3000 K
LT-16.0103-S-3-40	23,6 W	2331 lm	Ra>90	4000 K
LT-16.0103-S-4-27	30,9 W	2634 lm	Ra>90	2700 K
LT-16.0103-S-4-30	30,9 W	2773 lm	Ra>90	3000 K
LT-16.0103-S-4-40	30,9 W	2911 lm	Ra>90	4000 K
LT-16.0103-S-5-27	36,6 W	3009 lm	Ra>90	2700 K
LT-16.0103-S-5-30	36,6 W	3168 lm	Ra>90	3000 K
LT-16.0103-S-5-40	36,6 W	3326 lm	Ra>90	4000 K

PRODUCT FAMILIES

BALDER LT-16.0103

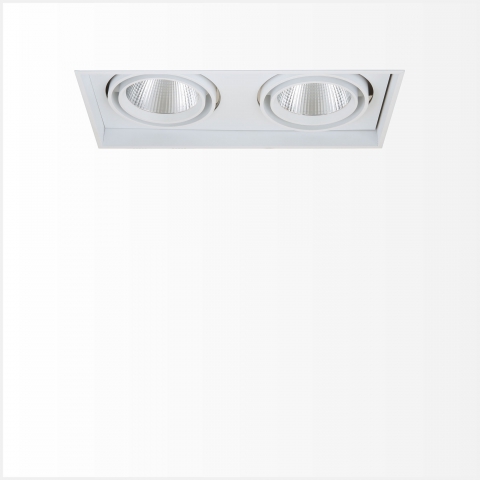

BALDER LT-16.0104

BALDER LT-16.0105

BALDER LT-16.0103-S

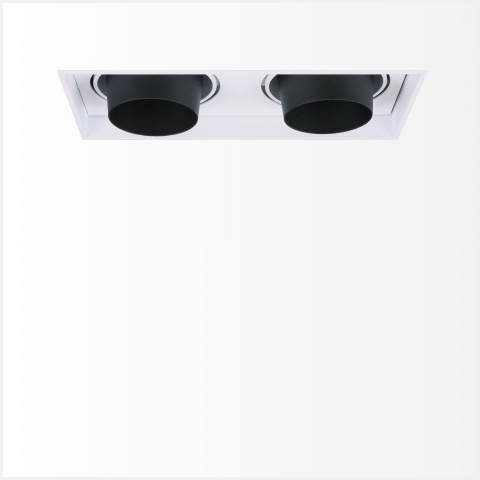

BALDER LT-16.0104-S

BALDER LT-16.0105-S
